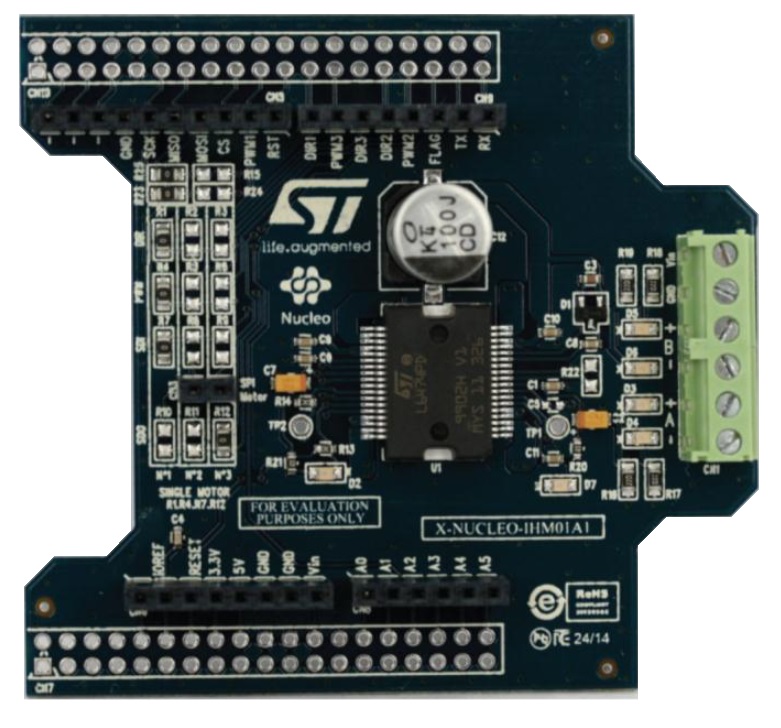

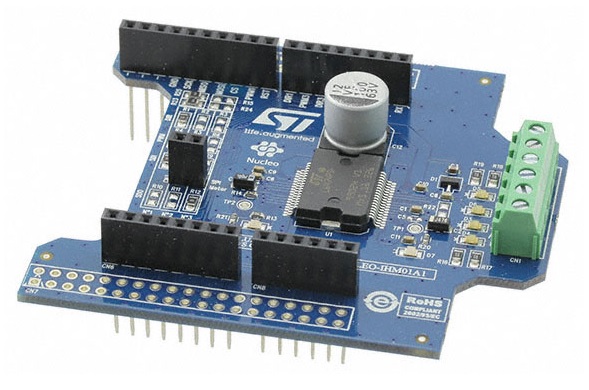

The X-NUCLEO-IHM01A1 is a stepper motor driving board based on the L6474. It provides an affordable and easy-to-use solution for driving stepper motors in your STM32 Nucleo project.

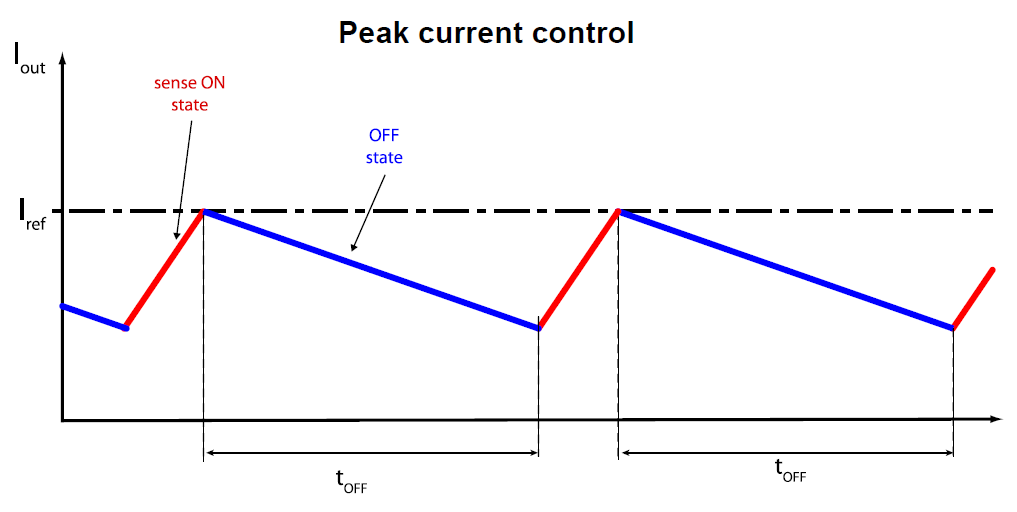

The advanced current control of the L6474 and the complete set of protections guarantee high performance and robustness.
The X-NUCLEO-IHM01A1 is compatible with the Arduino UNO R3 connector on the ST Morpho connector.
More boards of the same type can be stacked easily to drive up to three stepper motors with a single STM32 Nucleo board.
| Manufacturer | STMicroelectronics |
|---|---|
| Category | Motor Control |
| Eval Board Part Number | 497-14844-ND |
| Eval Board Supplier | STMicroelectronics |
| Eval Board |
Normally In Stock
|
| Voltage In |
8 ~ 45 V
|
| Number of Motors and Type |
1, Stepper Motor, BiPolar
|
| Power / Current Out |
3 A
|
| Features |
Arduino Compatible
Current Limit (Adj. or Fixed) Microstepping Over Current Protection Shutdown, Enable, Standby SPI Interface Thermal Protection Under Voltage Protection, Brown-Out |
| Component Count + Extras |
34 + 10
|
| Application / Target Market |
Motor Control
|
| Design Author |
STMicroelectronics
|
| Main I.C. Base Part |
L6474
|
| Date Created By Author | 2015-03 |
| Date Added To Library | 2017-05 |
