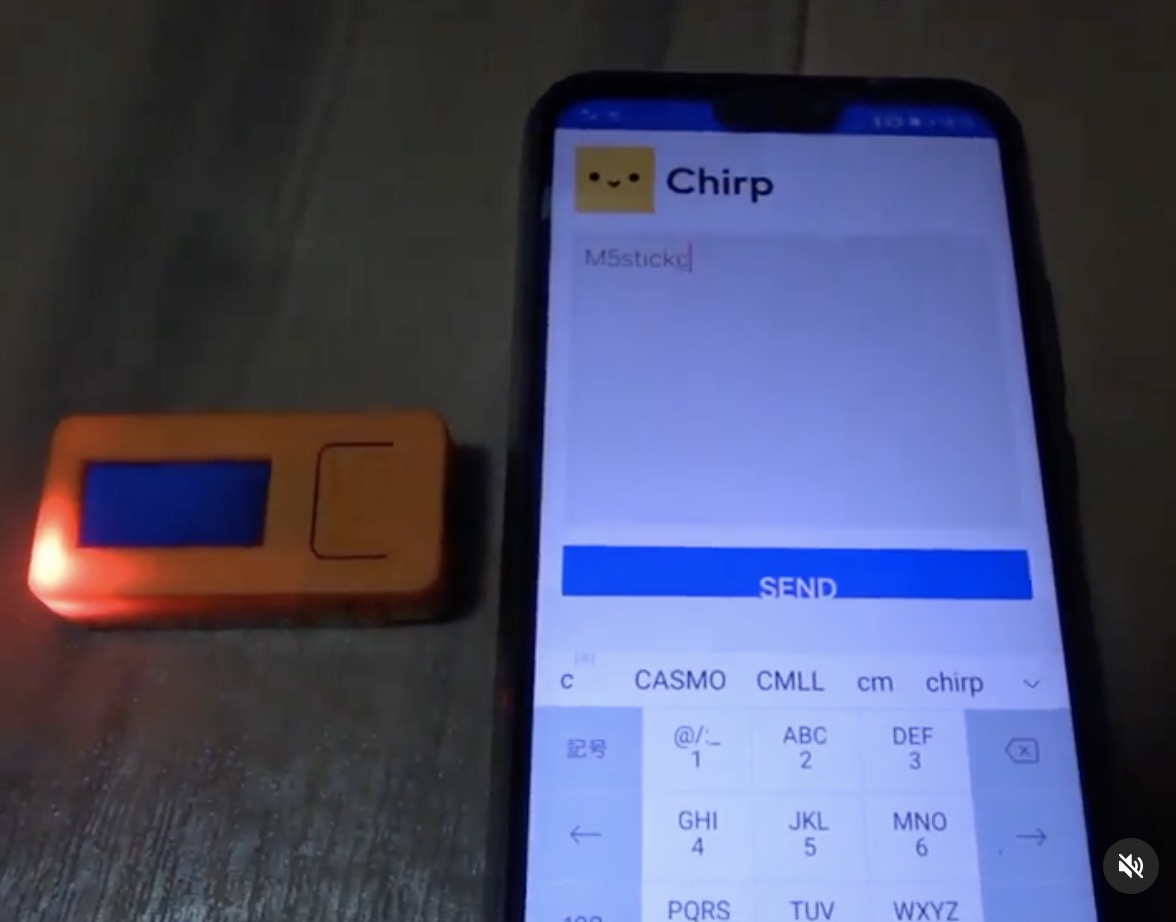

Chirp with M5StickC

#include <M5StickC.h>
#include <driver/i2s.h>
#include "efontEnableAll.h"
#include "efont.h"
#include "efontM5StickC.h"

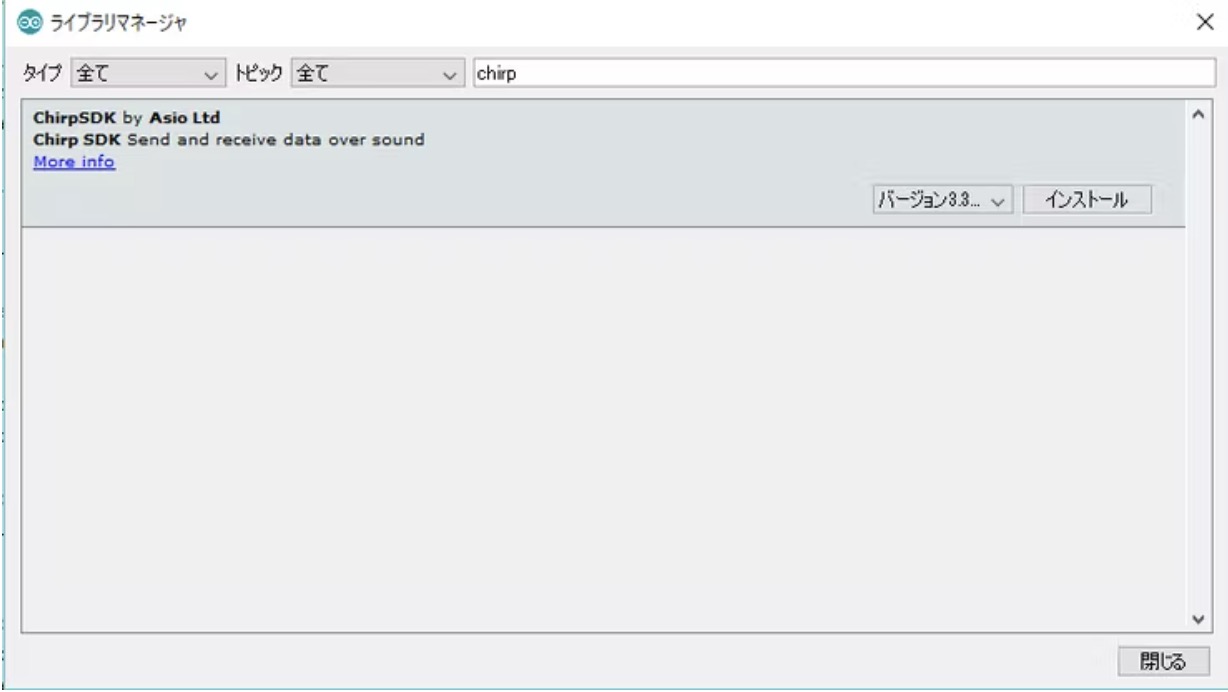

#include "chirp_connect.h"
#include "credentials.h"

#define PIN_CLK  0
#define PIN_DATA 34

#define LED_PIN           10      // Pin number for on-board LED

#define BUFFER_SIZE       512    // Audio buffer size
#define SAMPLE_RATE       16000  // Audio sample rate

#define MIC_CALIBRATION   13125
#define CONVERT_INPUT(sample) (((int32_t)(sample) >> 14)   MIC_CALIBRATION)

// Global variables ------------------------------------------------------------
static chirp_connect_t *chirp = NULL;
static chirp_connect_state_t currentState = CHIRP_CONNECT_STATE_NOT_CREATED;
static bool startTasks = false;

// Function definitions --------------------------------------------------------
void setupChirp();
void chirpErrorHandler(chirp_connect_error_code_t code);
void setupAudioInput(int sample_rate);

// Function declarations -------------------------------------------------------
void setup()
{
 M5.begin();
 M5.Lcd.setRotation(1);
 M5.Lcd.fillScreen(BLACK);
 delay(500);
 pinMode(LED_PIN, OUTPUT);
 digitalWrite(LED_PIN, LOW);
 Serial.begin(115200);
 Serial.printf("Heap size: %u\n", ESP.getFreeHeap());
 xTaskCreate(initTask, "initTask", 16384, NULL, 1, NULL);
}


void loop()
{
 esp_err_t audioError;
 chirp_connect_error_code_t chirpError;
 if (startTasks)
 {
   xTaskCreate(processInputTask, "processInputTask", 16384, NULL, 5, NULL);
   startTasks = false;
 }
}


// RTOS Tasks ------------------------------------------------------------------
void initTask(void *parameter)
{
 setupChirp();
 chirp_connect_error_code_t chirpError = chirp_connect_set_input_sample_rate(chirp, SAMPLE_RATE);
 chirpErrorHandler(chirpError);
 setupAudioInput(SAMPLE_RATE);
 Serial.printf("Heap size: %u\n", ESP.getFreeHeap());
 startTasks = true;
 vTaskDelete(NULL);
}

void processInputTask(void *parameter)
{
 esp_err_t audioError;
 chirp_connect_error_code_t chirpError;
 size_t bytesLength = 0;
 float buffer[BUFFER_SIZE] = {0};
 int32_t ibuffer[BUFFER_SIZE] = {0};
 while (currentState >= CHIRP_CONNECT_STATE_RUNNING)
 {
   audioError = i2s_read(I2S_NUM_0, ibuffer, BUFFER_SIZE * 4, &bytesLength, portMAX_DELAY);
   if (bytesLength)
   {
     for (int i = 0; i < bytesLength / 4; i  )
     {
       buffer[i] = (float) CONVERT_INPUT(ibuffer[i]);
     }
     chirpError = chirp_connect_process_input(chirp, buffer, bytesLength / 4);
     chirpErrorHandler(chirpError);
   }
 }
 vTaskDelete(NULL);
}


// Chirp -----------------------------------------------------------------------
void onStateChangedCallback(void *chirp, chirp_connect_state_t previous, chirp_connect_state_t current)
{
 currentState = current;
 Serial.printf("State changed from %d to %d\n", previous, current);
}

void onReceivingCallback(void *chirp, uint8_t *payload, size_t length, uint8_t channel)
{
 Serial.println("Receiving data...");
 digitalWrite(LED_PIN, HIGH);
}

void onReceivedCallback(void *chirp, uint8_t *payload, size_t length, uint8_t channel)
{
 if (payload)
 {
   char *data = (char *)calloc(length   1, sizeof(uint8_t));
   memcpy(data, payload, length * sizeof(uint8_t));
   Serial.print("Received data: ");
   Serial.println(data);

   // text print
   M5.Lcd.fillScreen(BLACK);
   M5.Lcd.setTextSize(2);
   printEfont(data, 5, 10);
   free(data);
 }
 else
 {
   Serial.println("Decode failed.");
 }
}

void setupChirp()
{
 chirp = new_chirp_connect(CHIRP_APP_KEY, CHIRP_APP_SECRET);

 if (chirp == NULL)
 {
   Serial.println("Chirp initialisation failed.");
   return;
 }

 chirp_connect_error_code_t err = chirp_connect_set_config(chirp, CHIRP_APP_CONFIG);
 chirpErrorHandler(err);
 chirp_connect_callback_set_t callbacks = {0};
 callbacks.on_state_changed = onStateChangedCallback;
 callbacks.on_receiving = onReceivingCallback;
 callbacks.on_received = onReceivedCallback;
 err = chirp_connect_set_callbacks(chirp, callbacks);
 chirpErrorHandler(err);
 err = chirp_connect_set_callback_ptr(chirp, chirp);
 chirpErrorHandler(err);
 err = chirp_connect_start(chirp);
 chirpErrorHandler(err);
 Serial.println("Chirp Connect initialised.");
}

void chirpErrorHandler(chirp_connect_error_code_t code)
{
 if (code != CHIRP_CONNECT_OK)
 {
   const char *error_string = chirp_connect_error_code_to_string(code);
   Serial.println(error_string);
   exit(42);
 }
}


// I2S Audio -------------------------------------------------------------------
void setupAudioInput(int sample_rate)
{
 i2s_config_t i2s_config = {
   .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX | I2S_MODE_PDM),
   .sample_rate =  sample_rate,
   .bits_per_sample = I2S_BITS_PER_SAMPLE_32BIT, // is fixed at 12bit, stereo, MSB
   .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
   .communication_format = I2S_COMM_FORMAT_I2S,
   .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
   .dma_buf_count = 8,
   .dma_buf_len = 64,
  };

  i2s_pin_config_t pin_config;
  pin_config.bck_io_num   = I2S_PIN_NO_CHANGE;
  pin_config.ws_io_num    = PIN_CLK;
  pin_config.data_out_num = I2S_PIN_NO_CHANGE;
  pin_config.data_in_num  = PIN_DATA;

  i2s_driver_install(I2S_NUM_0, &i2s_config, 0, NULL);
  i2s_set_pin(I2S_NUM_0, &pin_config);
  i2s_set_sample_rates(I2S_NUM_0, sample_rate);
  i2s_set_clk(I2S_NUM_0, sample_rate, I2S_BITS_PER_SAMPLE_32BIT, I2S_CHANNEL_MONO);
}
